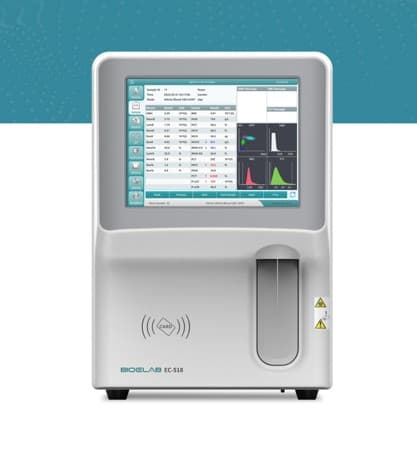

5-Diff Auto Hematology Analyzer

A 5-part differential hematology analyzer using sheath flow cytometry, reporting 25 clinical parameters plus 12 research parameters with dual optical counting channels.

Key Specifications

Technology: Sheath flow cytometry, tri-angle laser scatter
Reportable parameters: 25, plus 12 research parameters
Histograms / scattergrams: 3 histograms, 4 scattergrams (3 DIFF, 1 BASO)
Channels: Dual optical counting channels (DIFF and basophil)

Enquire About This Product Share on WhatsApp

Full Specifications

Technology	Sheath flow cytometry, tri-angle laser scatter
Reportable parameters	25, plus 12 research parameters
Histograms / scattergrams	3 histograms, 4 scattergrams (3 DIFF, 1 BASO)
Channels	Dual optical counting channels (DIFF and basophil)

Sample modes	Whole blood and pre-diluted
Throughput	60 samples/hour, 15 µL sample volume
Display	10.4" TFT touchscreen
Storage	Up to 50,000 samples
Connectivity	Direct USB printer
Regulatory	CE marked

About This Product

Tri-angle laser scatter technology drives both the differential and basophil measurement channels, running whole-blood or pre-diluted samples with storage for tens of thousands of past results — the step up from the 3-part analyzer for labs that need finer differential detail.
