Surgical C-Arms

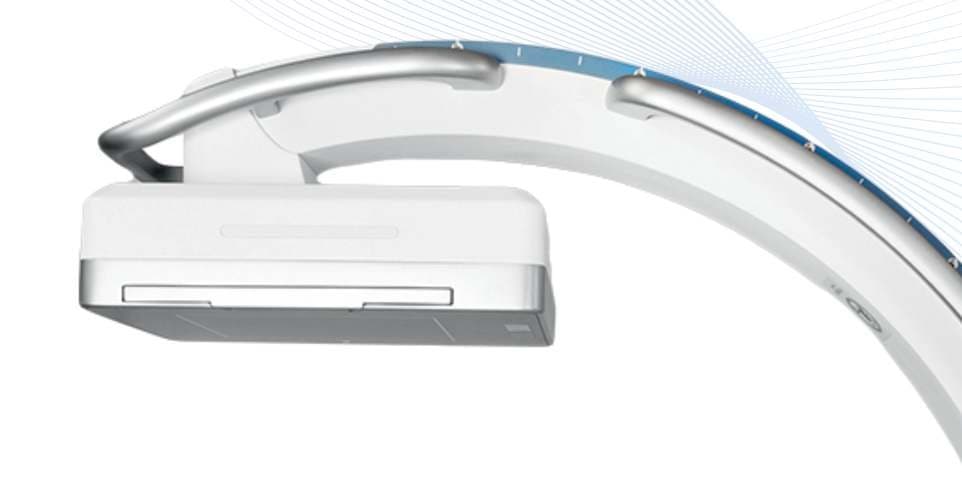

Premium Digital Mobile C-Arm — 5C
The flagship of the C-Arm line — a 27" split-screen monitor, a live dose-monitoring (DAP) display, and optional roadmapping and DSA, for higher-acuity vascular and cardiology procedures.
Key Specifications
- Power
- 5kW
- Max voltage
- 125kV
- kV range
- 40–125kV
- mA in pulse fluoroscopy
- Max 32mA
- mA in continuous fluoroscopy
- Max 6.3mA
Full Specifications
| Power | 5kW |
| Max voltage | 125kV |
| kV range | 40–125kV |
| mA in pulse fluoroscopy | Max 32mA |
| mA in continuous fluoroscopy | Max 6.3mA |
| mA in digital radiography | Max 100mA |
| Generator frequency | 50kHz |
About This Product
The 5C is our premium C-Arm: the same 5kW generator class as the base model, but built around a much larger imaging and control envelope — a 22cm×22cm carbon-fibre flat-panel detector at 139µm pixel pitch, a 27" high-resolution split-screen monitor on its own mobile trolley, and a live DAP dose display with overdose warnings. Optional roadmapping and DSA extend it into vascular and interventional cardiology work, alongside its core orthopaedic, spine, and pain-management caseload.
Need More Information?
Our team can provide detailed specifications, pricing, and installation details for Premium Digital Mobile C-Arm — 5C.
Request a Quote
