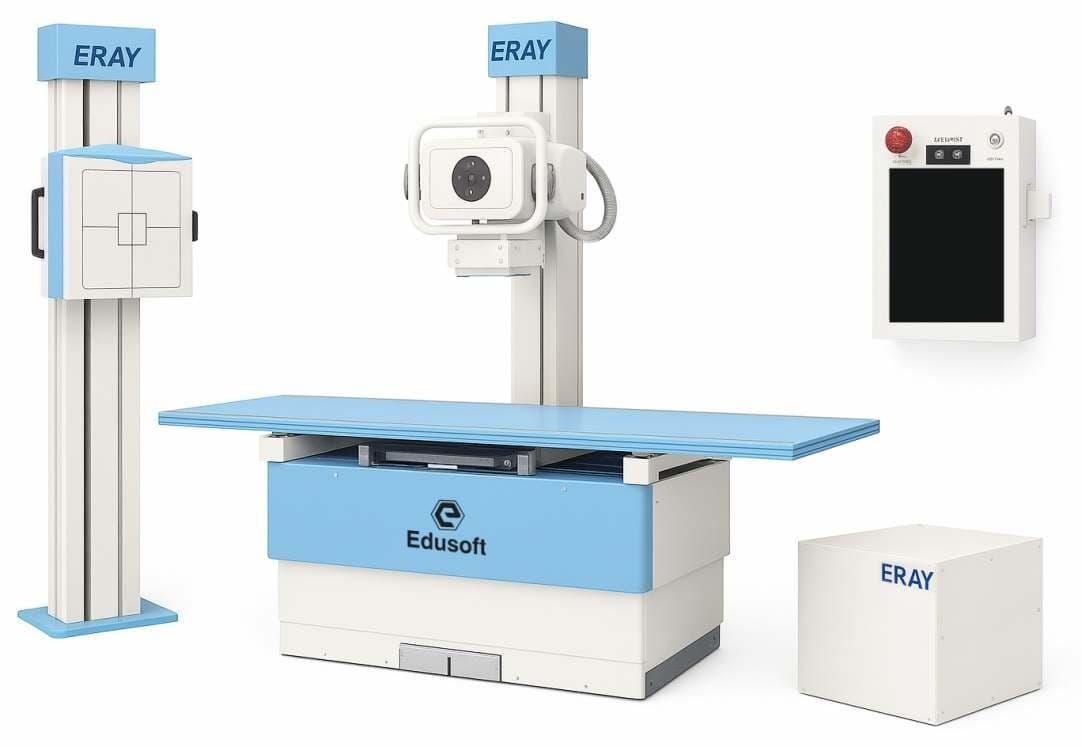

Digital X-Ray System — Floor-Mounted (General Purpose)

A general-purpose fixed X-ray room available across six power tiers, from a 10kW clinic-scale unit up to an 80kW hospital-grade system, with a 17"×17" tilting chest bucky stand.

Key Specifications

Models / power output: 10kW · 20kW · 32kW · 40kW · 50kW · 80kW
Generator type: High-frequency (all tiers)
kV range: 40–125kV (10–40kW tiers) · 40–150kV (50kW/80kW tiers)
mA range: 10–200mA up to 10–1,000mA depending on tier
mAs range: 0.1–200mAs up to 0.1–1,000mAs depending on tier

Enquire About This Product Download Brochure

Full Specifications

Models / power output	10kW · 20kW · 32kW · 40kW · 50kW · 80kW
Generator type	High-frequency (all tiers)
kV range	40–125kV (10–40kW tiers) · 40–150kV (50kW/80kW tiers)
mA range	10–200mA up to 10–1,000mA depending on tier
mAs range	0.1–200mAs up to 0.1–1,000mAs depending on tier
Timer range	0.01–10 sec
Line voltage	±10%, 50/60Hz
Inverter frequency	220kHz

Focal spot	1.0/2.0mm (lower tiers) down to 0.6/1.2mm (80kW tier)
Max anode heat	140kHU (lower tiers) up to 300–400kHU (80kW tier)
Max kV	125kV (10–40kW) · 150kV (50kW/80kW)

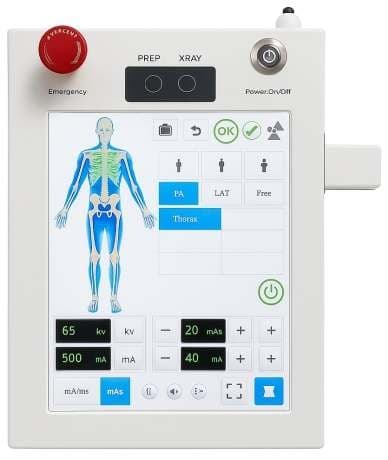

Console	10" touch, anatomical body-map exposure selection
Standard table	Horizontal Bucky Table (HBT)
Optional table	MPT / 4-way / 6-way
Optional accessories	Wall vertical bucky, chest bucky stand (17"×17" dynamic FPD, 6-step 15° tilt)

About This Product

Our entry point into fixed radiography — the same general-purpose room architecture scaled across six generator sizes (10kW through 80kW), so a small clinic and a large hospital department can both be quoted from the same product family at the power level they actually need. The 10" touch console uses an anatomical body-map selection UI for fast APR setup, and the optional chest bucky stand tilts in six 15° steps for lay-down, upright, or oblique work.
