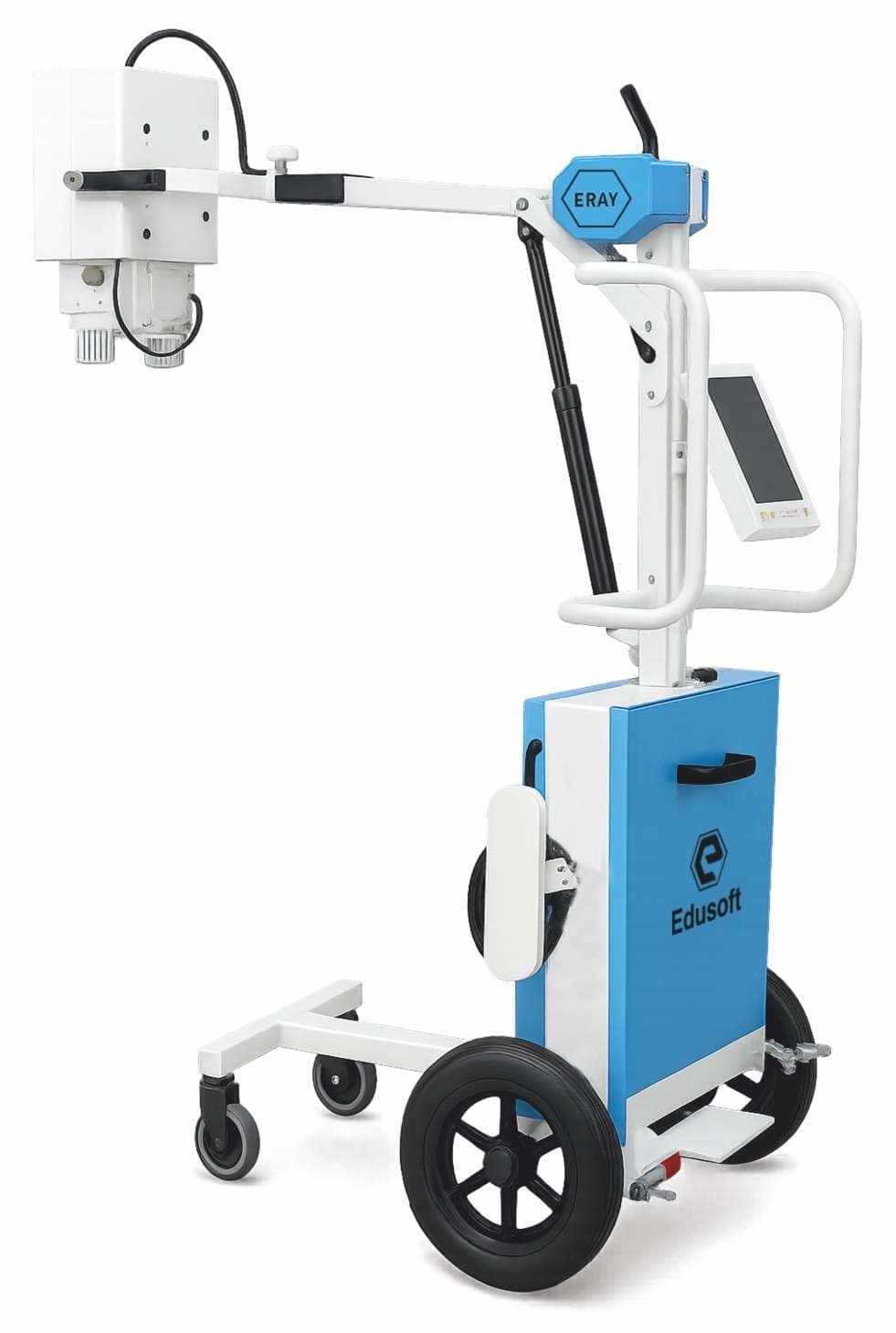

HF Mobile X-Ray (5kW / 6kW / 7kW) — image 1

Mobile X-Ray Systems

HF Mobile X-Ray (5kW / 6kW / 7kW)

A trolley-mounted mobile X-ray available in three power tiers, with a 10" touch console — built for wards, ICUs, and veterinary use where the patient can't be moved.

Key Specifications

Type
High-frequency, single phase 220V, 50/60Hz
Power output
5kW / 6kW / 7kW
mAs range
0.1–320mAs (5kW/6kW) · 0.5–320mAs (7kW)
kV range
40–125kV (all tiers)
mA range
5–100mA (5kW/6kW) · 5–150mA (7kW)
Enquire About This ProductDownload Brochure

Full Specifications

TypeHigh-frequency, single phase 220V, 50/60Hz
Power output5kW / 6kW / 7kW
mAs range0.1–320mAs (5kW/6kW) · 0.5–320mAs (7kW)
kV range40–125kV (all tiers)
mA range5–100mA (5kW/6kW) · 5–150mA (7kW)
Exposure timesUp to 10 sec (all tiers)
Main fuse16 Amp
Inverter frequencyUp to 250kHz

About This Product

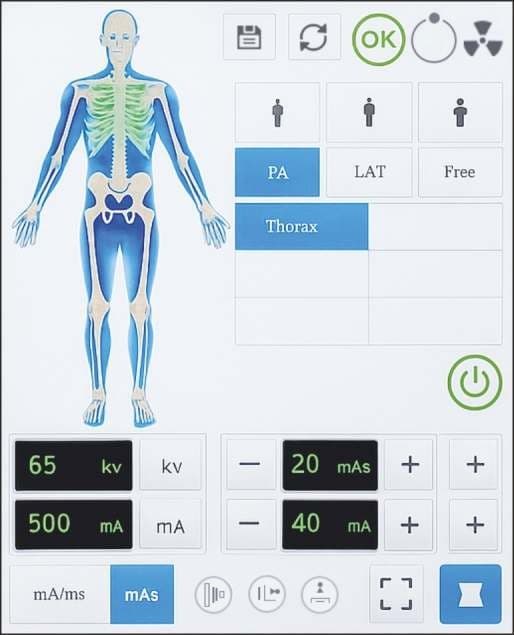

Our base mobile X-ray line, available in three power tiers (5kW, 6kW, 7kW) on the same chassis, so the choice comes down to how much power the typical caseload needs rather than a different machine entirely. A 10" touch console shows kV/mA/mAs/APR settings directly, and the cart runs on swivel castors with a dual-sided brake for stability at the bedside. Rated for human and veterinary use, and well suited to overweight, breathing-difficulty, trauma, and paediatric cases where moving the patient to a fixed room isn't practical.
