Mobile X-Ray Systems

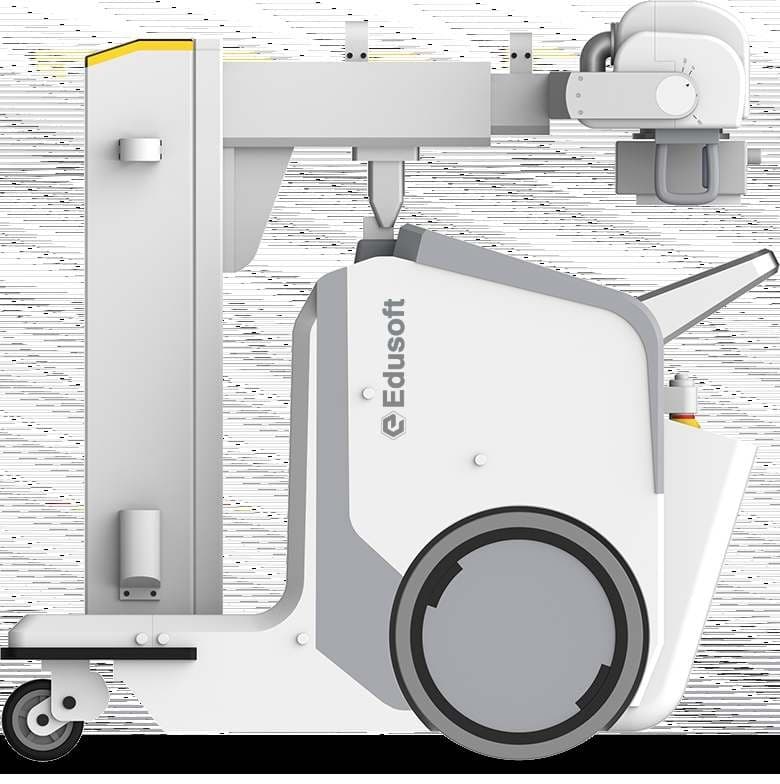

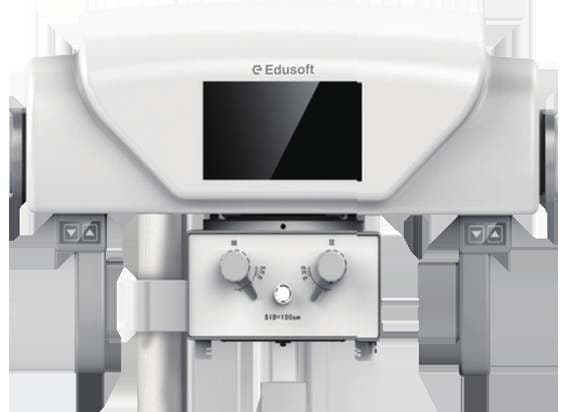

50kW Motorized Digital Mobile X-Ray — 50T
The flagship of the mobile line — fully motorized and battery-driven, up to 40% lower dose, with a 100km range per charge and a high-precision anti-collision system for busy wards.
Key Specifications
- Type
- High-frequency
- Power output
- 50kW
- kV range
- 40–150kV
- mA range
- 10–630mA
- mAs range
- 0.1–630mAs
Full Specifications
| Type | High-frequency |
| Power output | 50kW |
| kV range | 40–150kV |
| mA range | 10–630mA |
| mAs range | 0.1–630mAs |
| Inverter frequency | 270kHz |
| Time range | 0.1ms–10s |
About This Product
The 50T is a different class of mobile unit: a 50kW generator with a rotating anode, a fully motorized drive that climbs up to a 12° incline, and a battery good for roughly 100km of movement or 1,200 standard chest exposures per charge. Wireless flat-panel transmission over 5G and a radio-frequency remote (about 15m range) remove cabling from the workflow, and a high-precision anti-collision system brakes automatically around obstacles. Built for continuous, high-volume operation across a large facility rather than occasional bedside use.
