Mobile X-Ray Systems
Integrated Digital Mobile X-Ray — 6i
A premium mobile X-ray with a 14" LCD workstation built into the cart itself — power-assisted drive, a vertical tube-head swing, and a slit that stows the wireless detector safely between patients.
Key Specifications
- Type
- High-frequency
- Power output
- 6kW or 7kW
- Input voltage
- 220VAC ±10%, 50/60Hz
- kV range
- 40–125kV
- mA range
- 5–100mA (6kW) · 5–150mA (7kW)
Full Specifications
| Type | High-frequency |
| Power output | 6kW or 7kW |
| Input voltage | 220VAC ±10%, 50/60Hz |
| kV range | 40–125kV |
| mA range | 5–100mA (6kW) · 5–150mA (7kW) |
| mAs range | 0.1–320mAs |
| Exposure time | 1ms–10,000ms |
About This Product

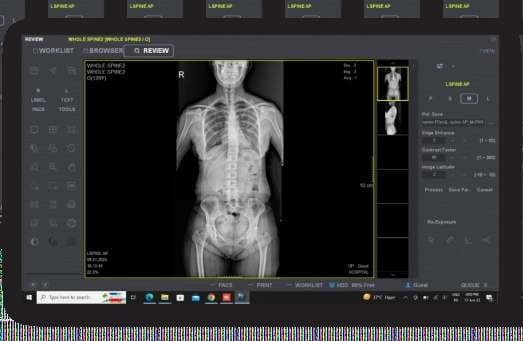

The 6i steps up from the base HF Mobile line with the imaging workstation built directly onto the cart (14" LCD touch display, i5/i7 processor, up to 1TB SSD) rather than a separate console. The tube head's vertical swing reaches varying bed heights without repositioning the whole cart, and a power-assist drive means the unit responds to light pressure on the handle rather than needing to be pushed. A dedicated slit holds the wireless flat-panel detector vertically between exams, under a sterile cover.
